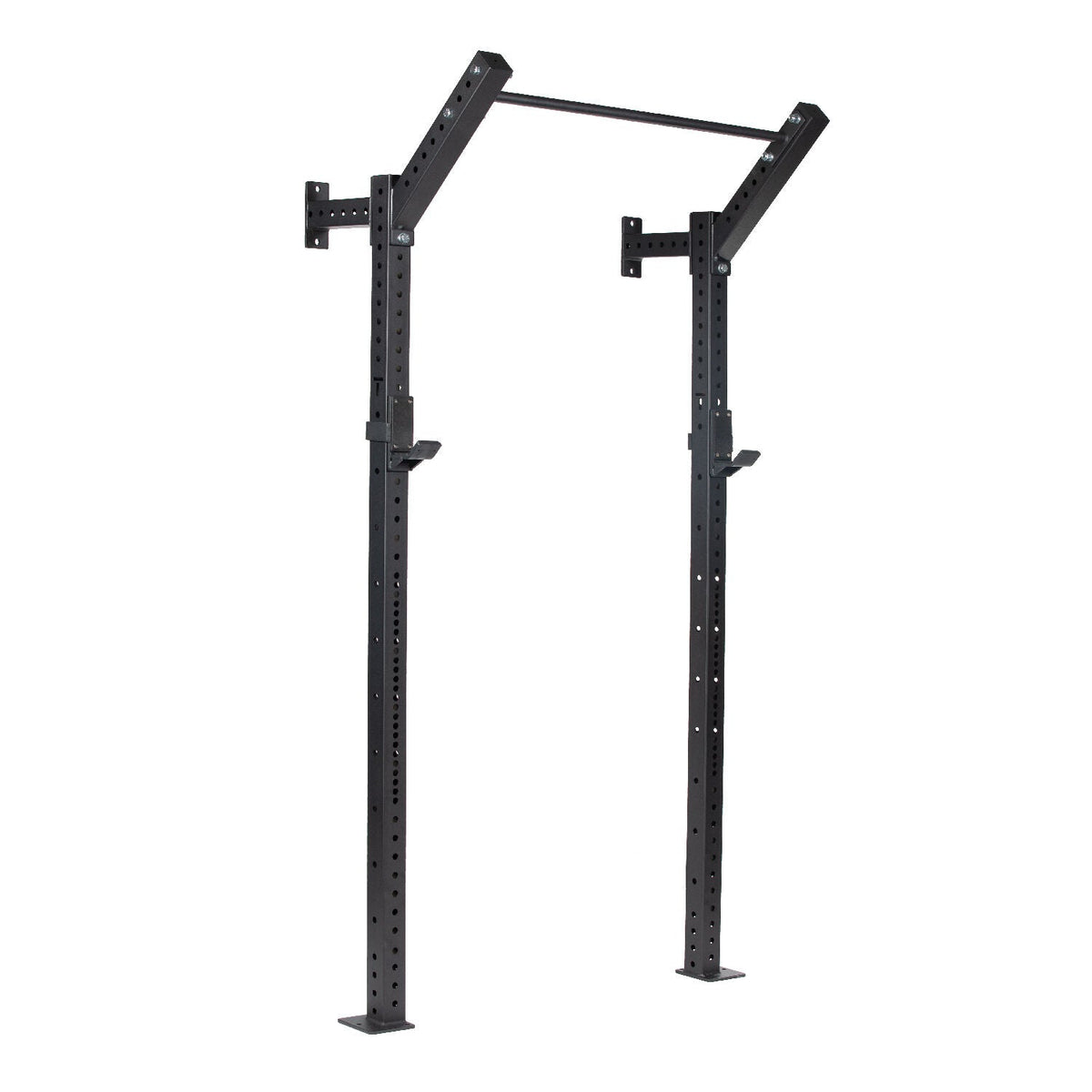

X-3 Series Space Saving Rack

Product Overview

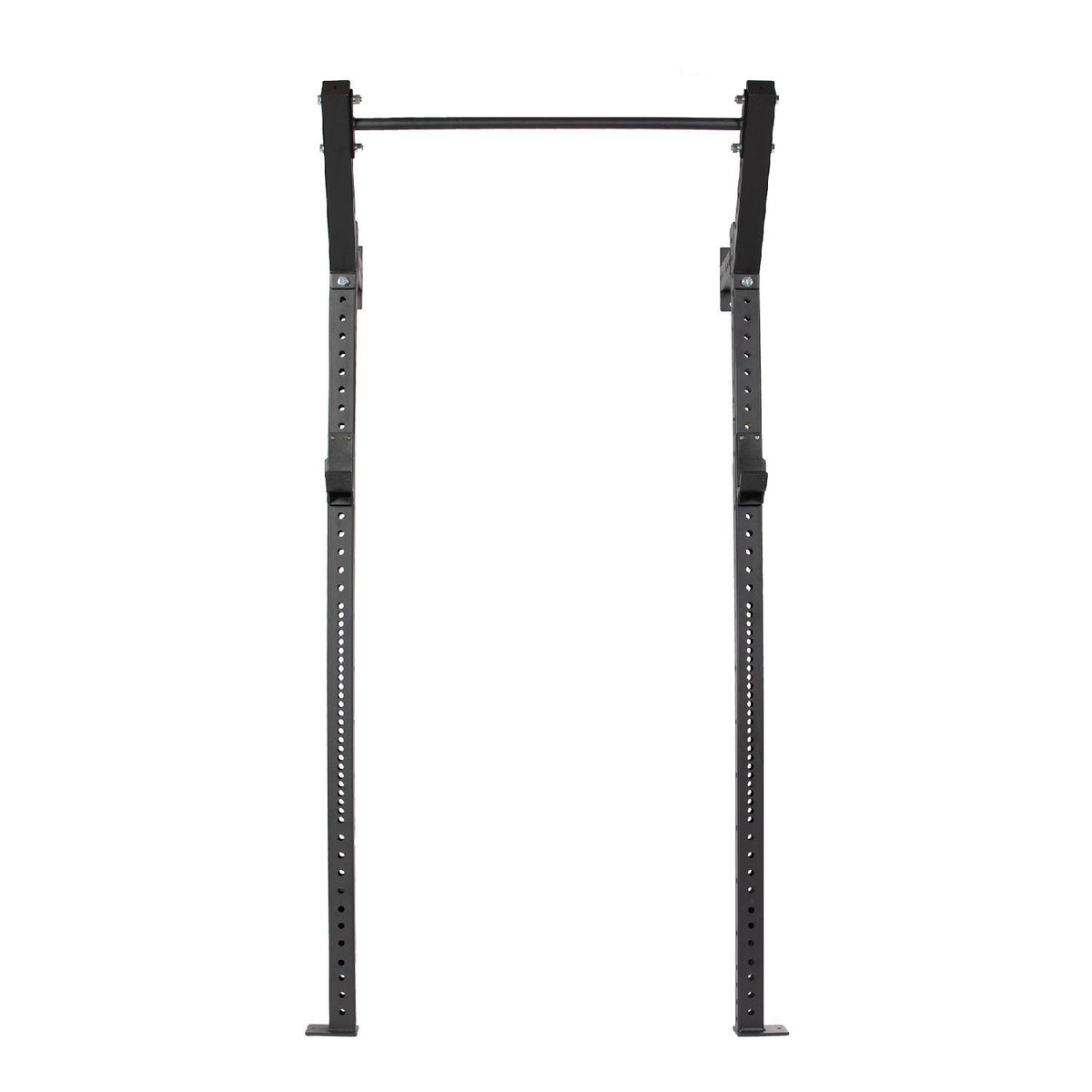

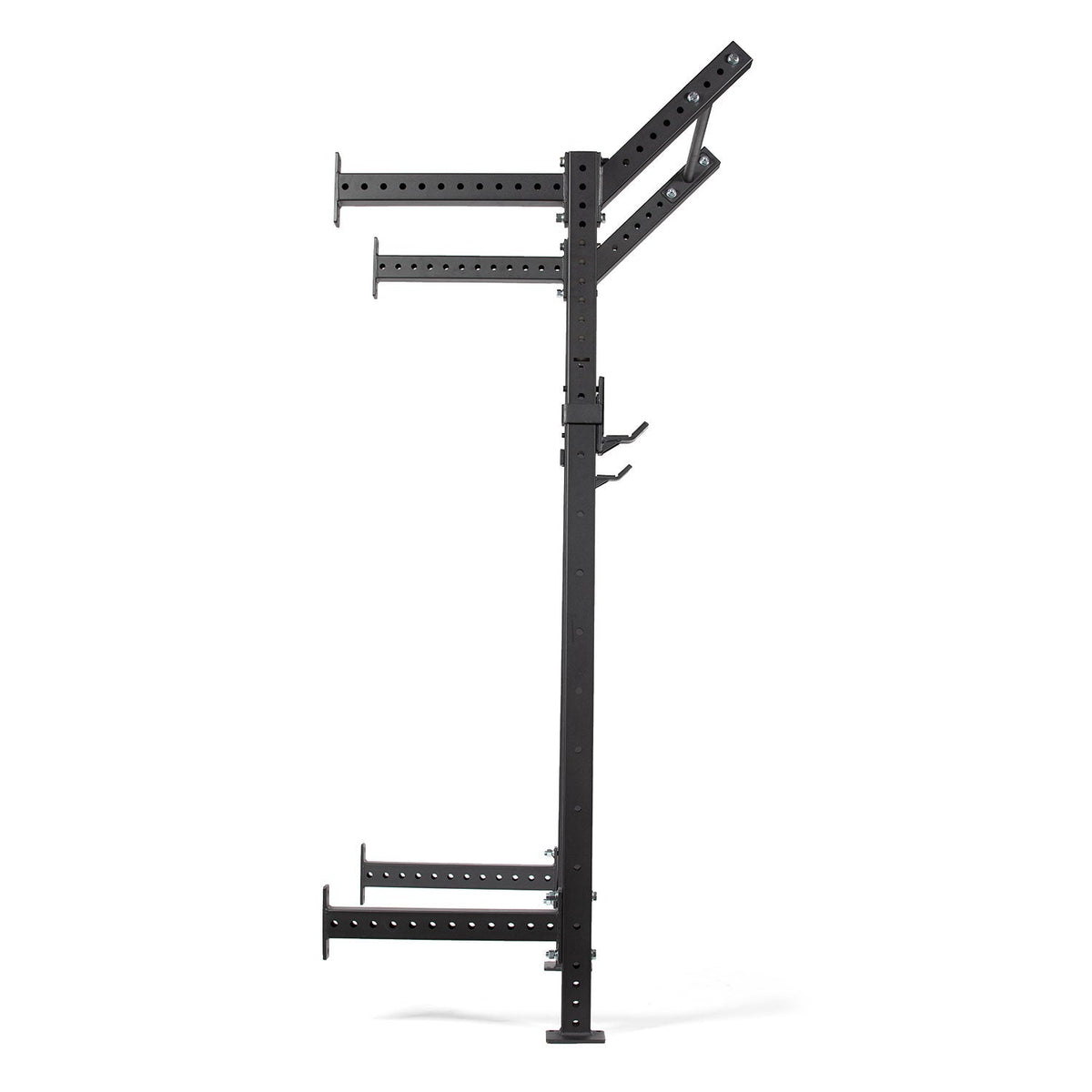

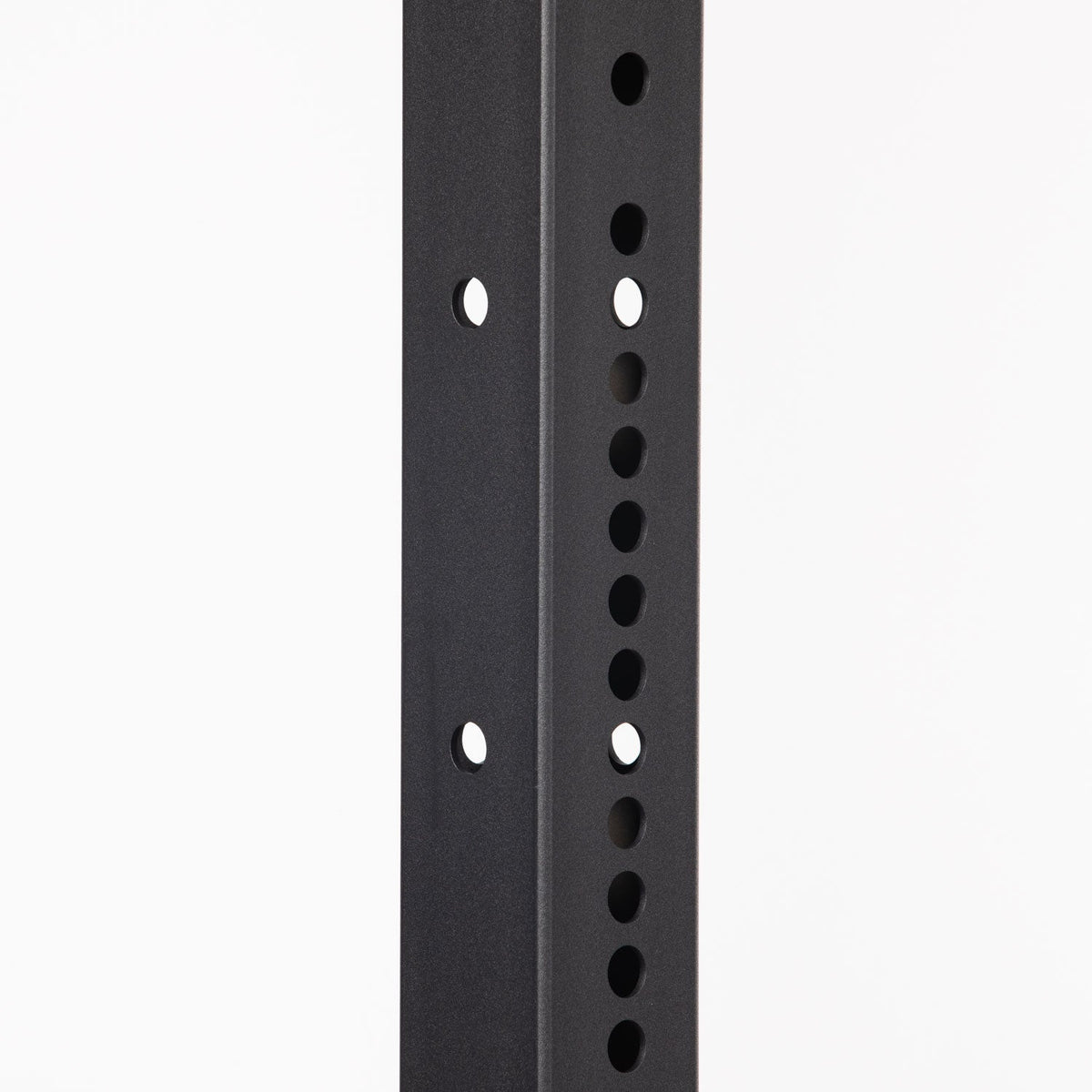

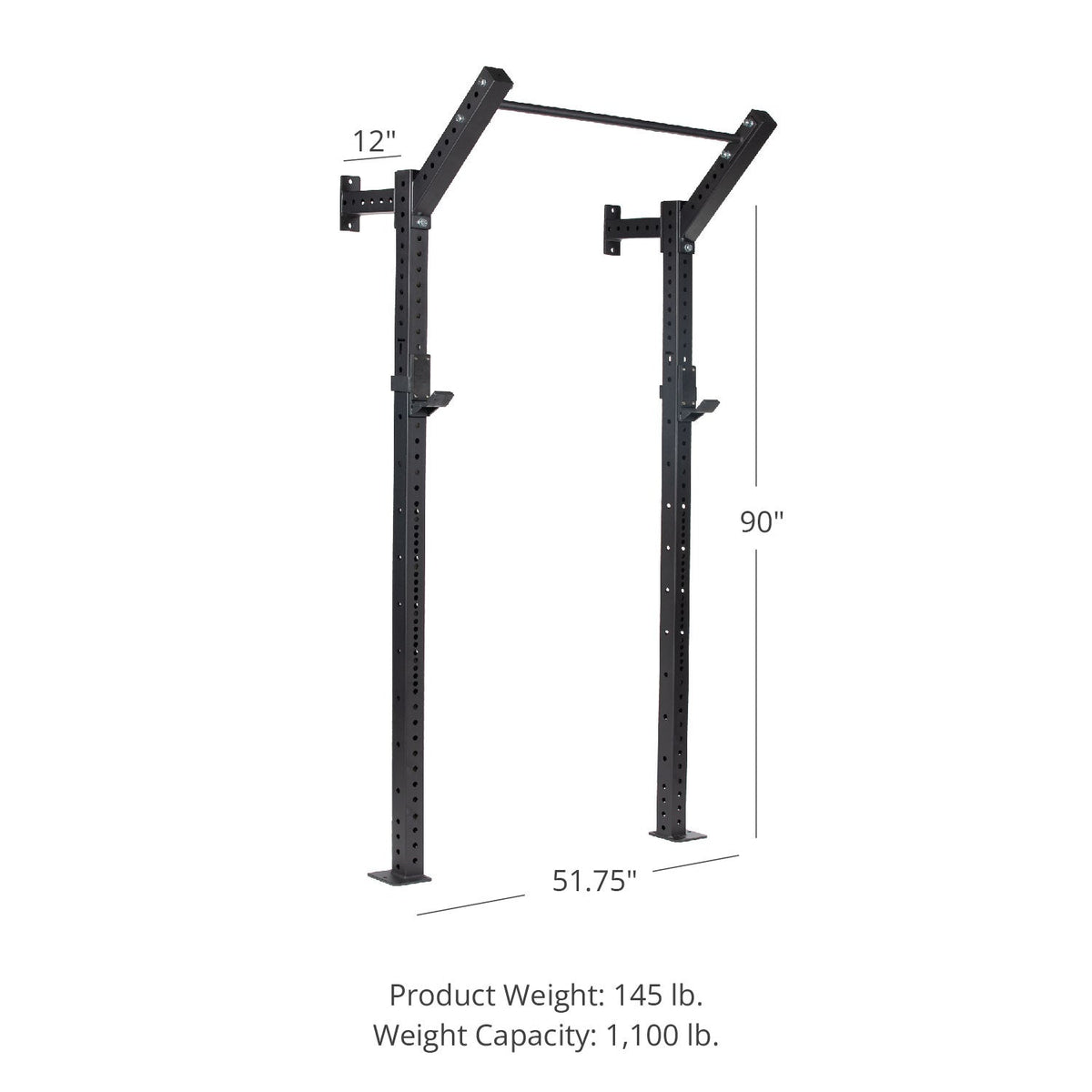

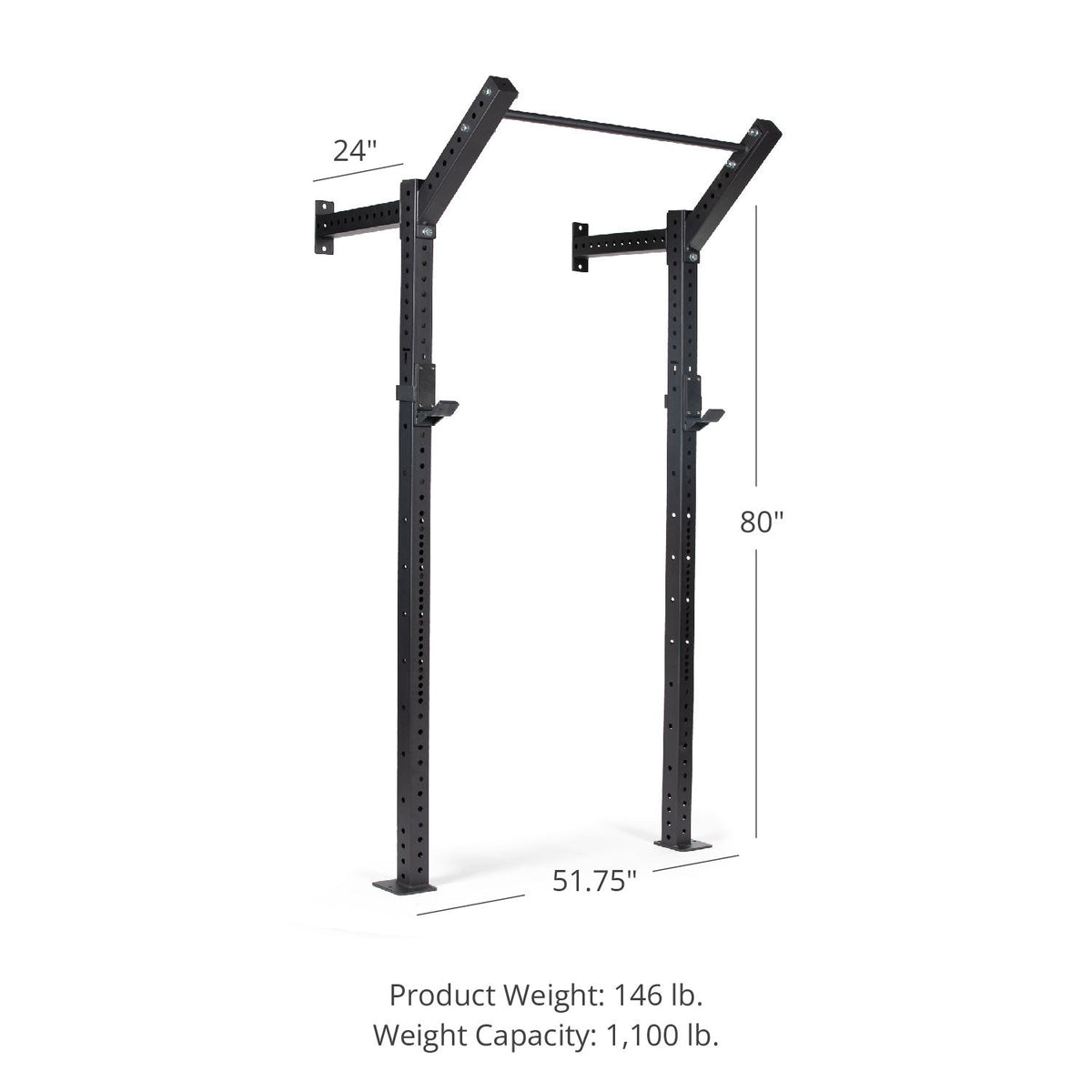

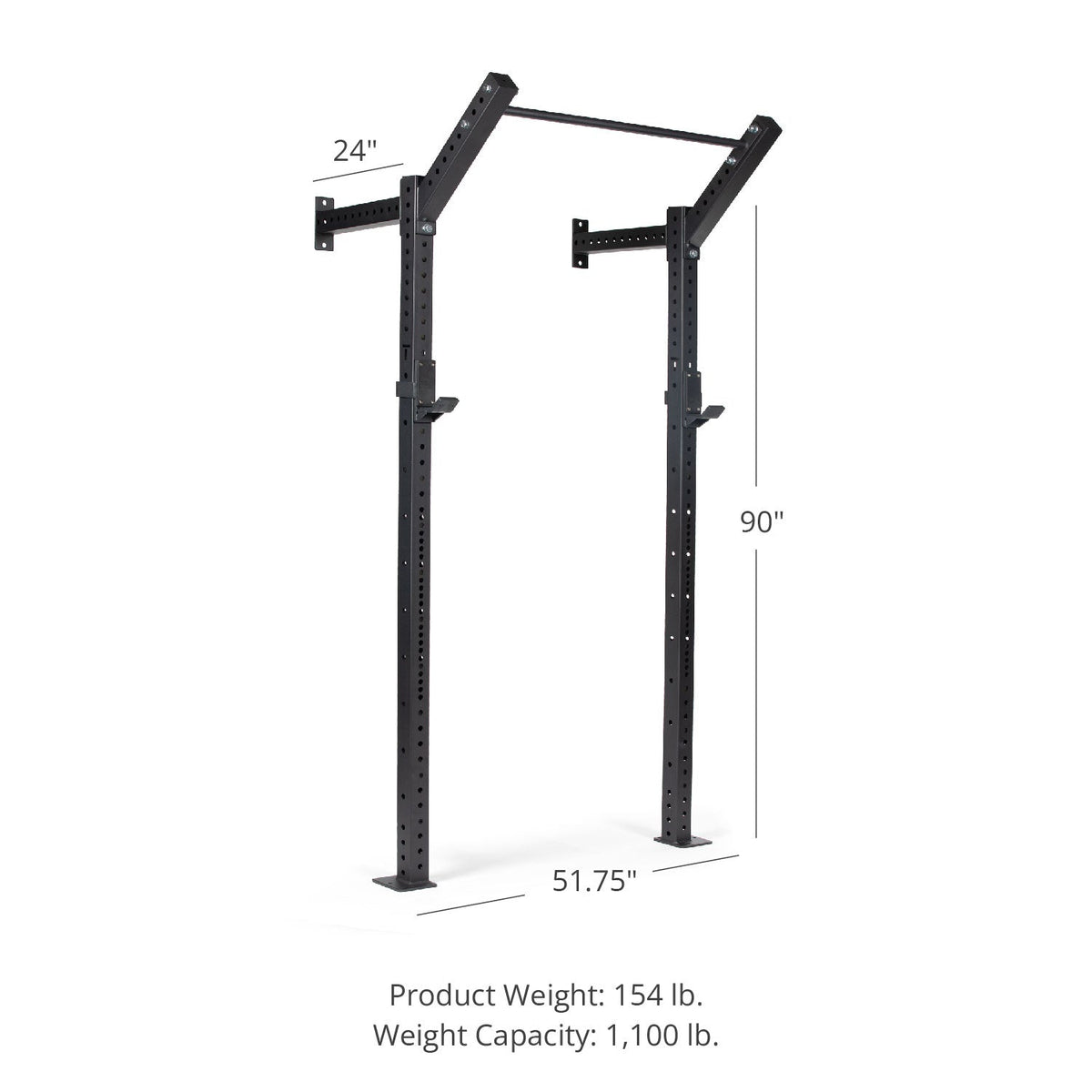

The X-3 Series Space Saving Racks give you the functionality of a power rack with a small footprint. We offer our Space Saving Racks in Short and Tall models with depth options of 12", 18", or 24". Featuring reinforced J-Hooks, heavy-duty 3" x 3" 11-gauge square steel uprights with laser-cut holes spaced 2" on the center, Westside hole spacing through the bench and clean pull zone, 6" hole spacing on the sides, and a bolt-together design. Additionally, we offer (2) side bracings in your desired length for optimal stability.

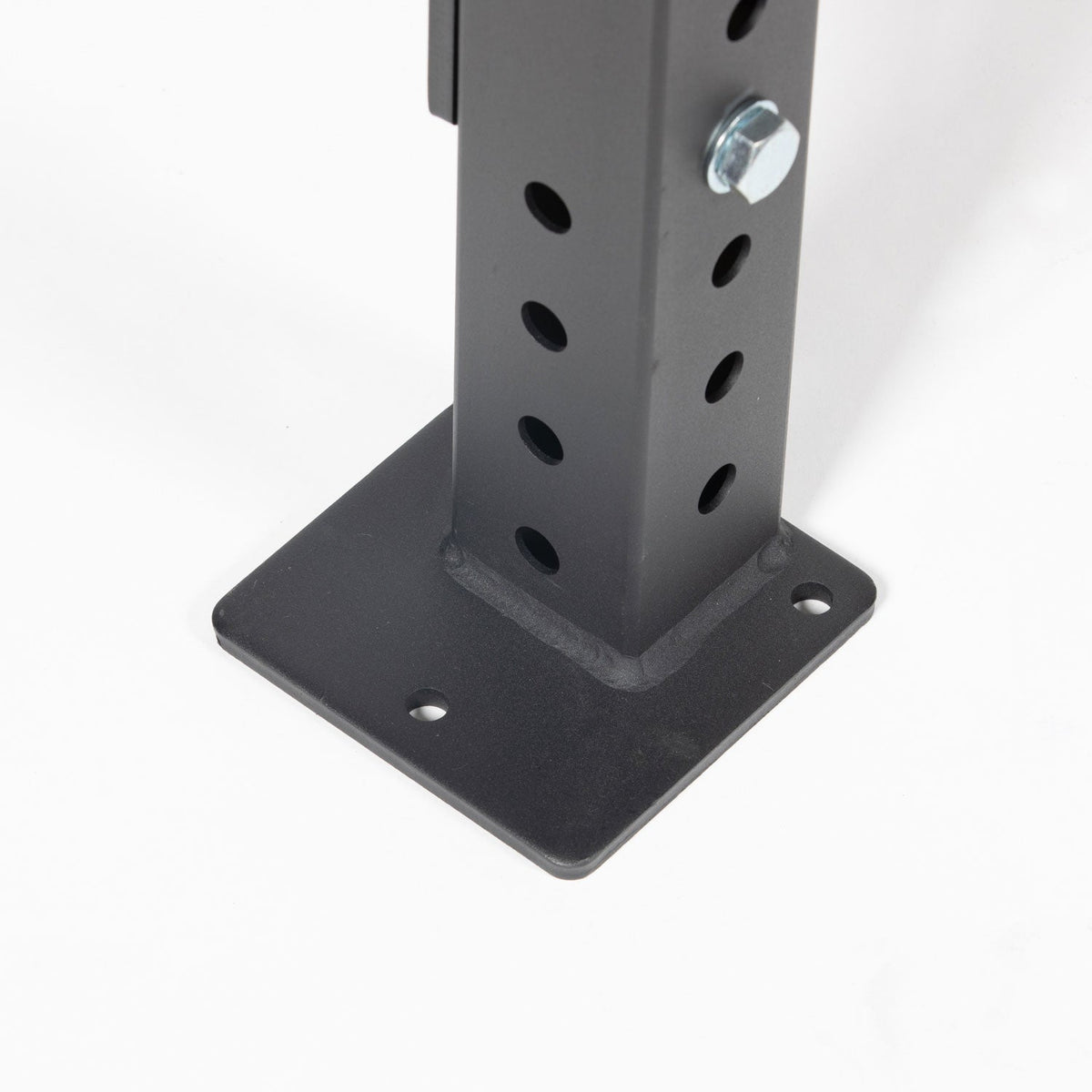

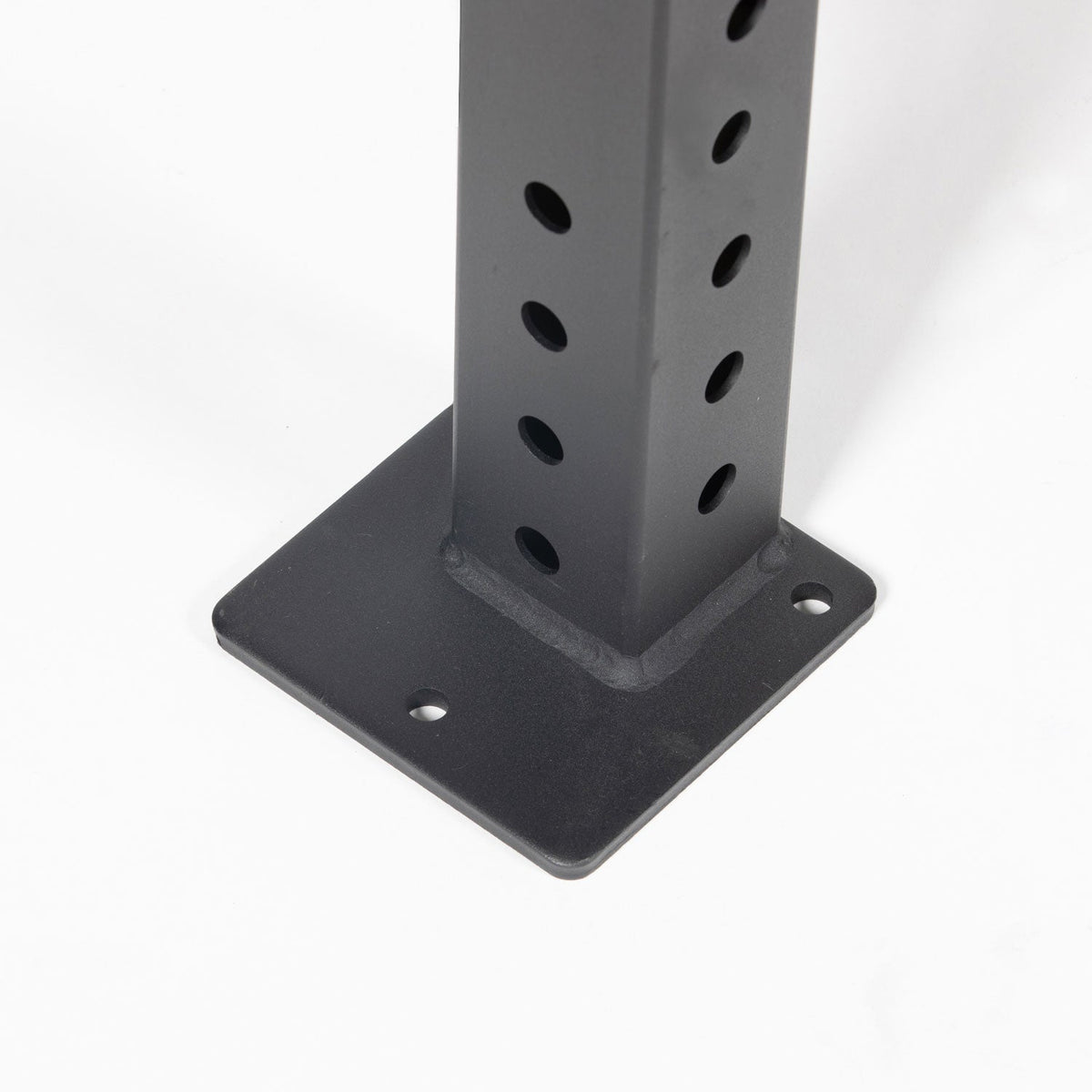

NOTE: Titan recommends bolting down your rack for added stability

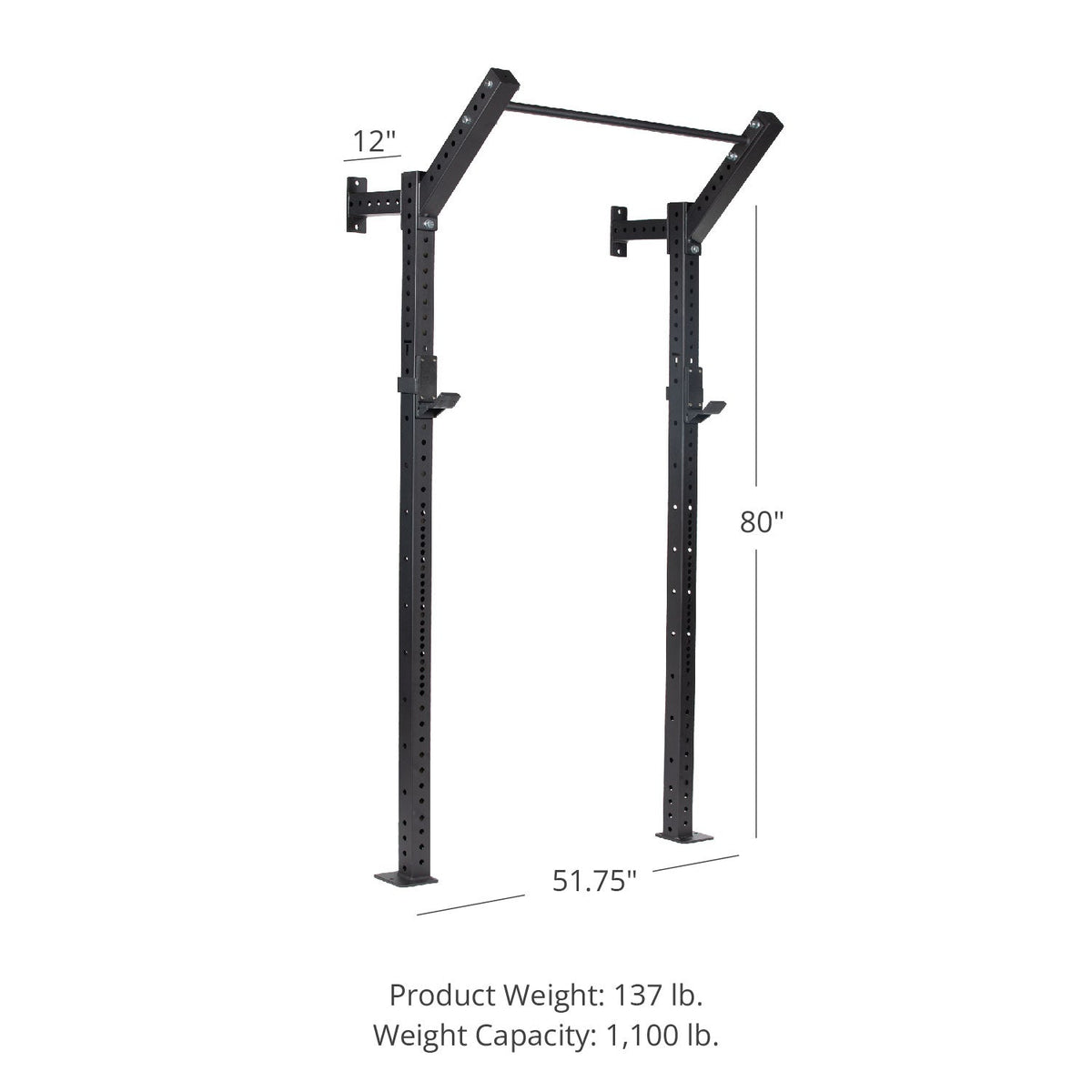

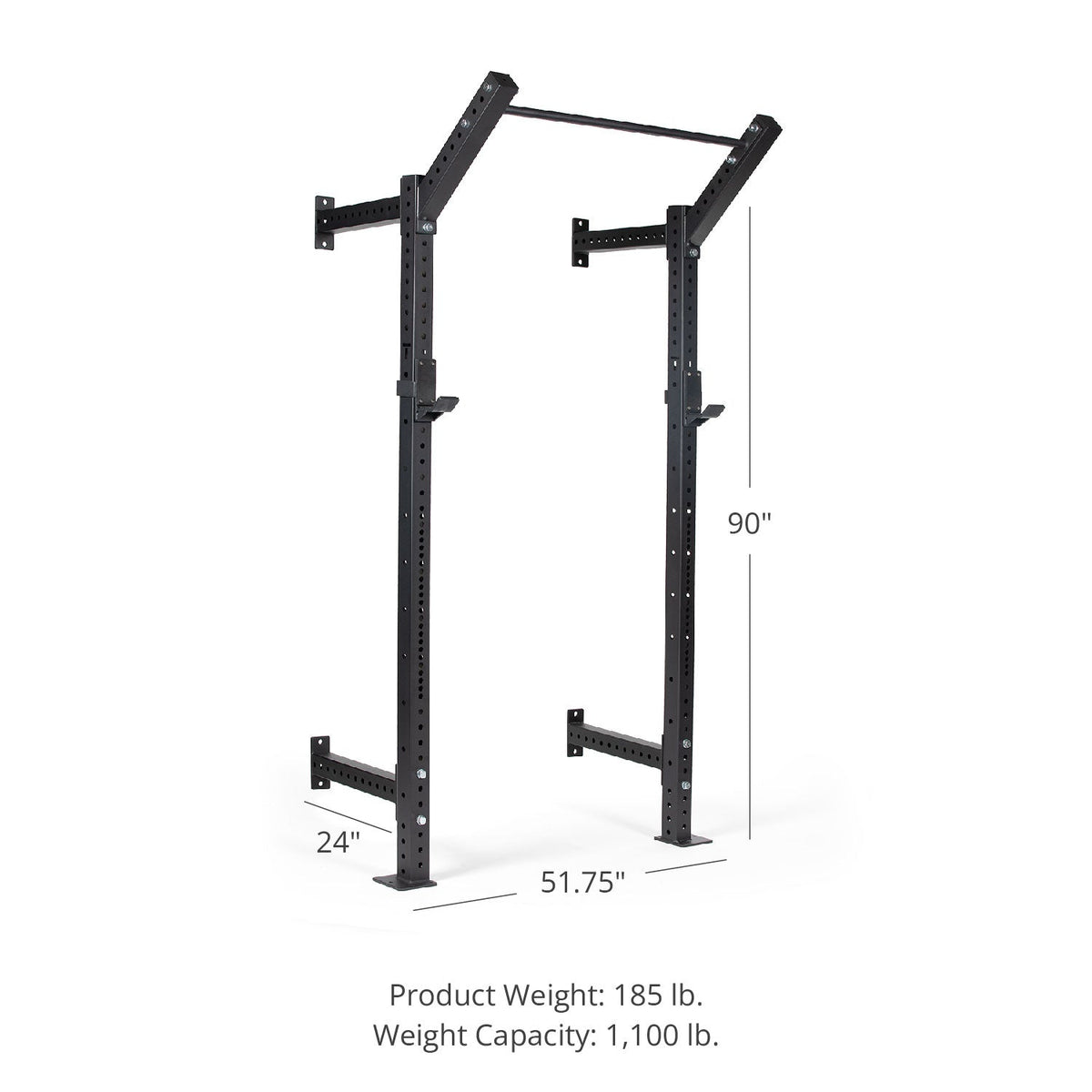

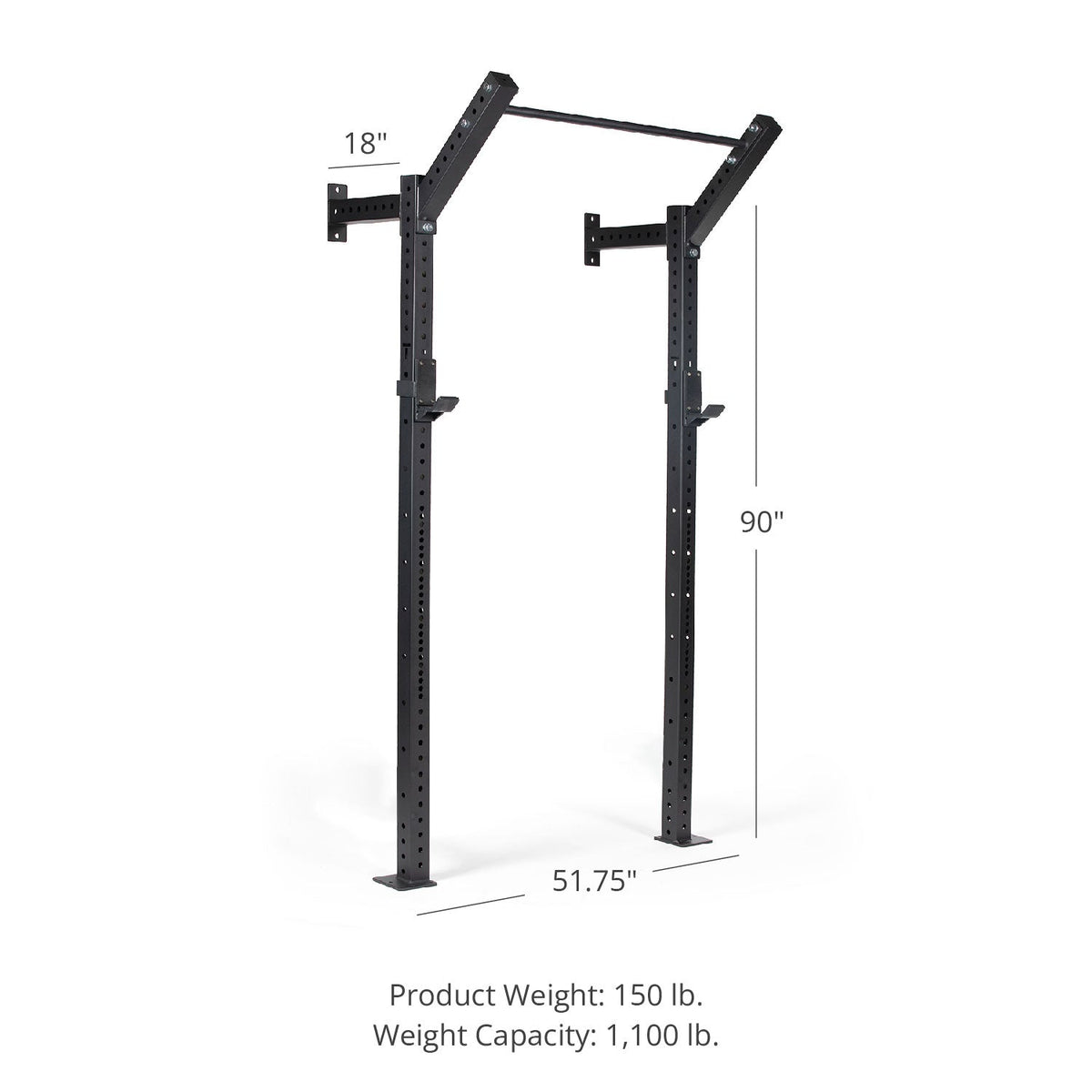

PRODUCT SPECIFICATIONS

90" / 12" / No

Specifications

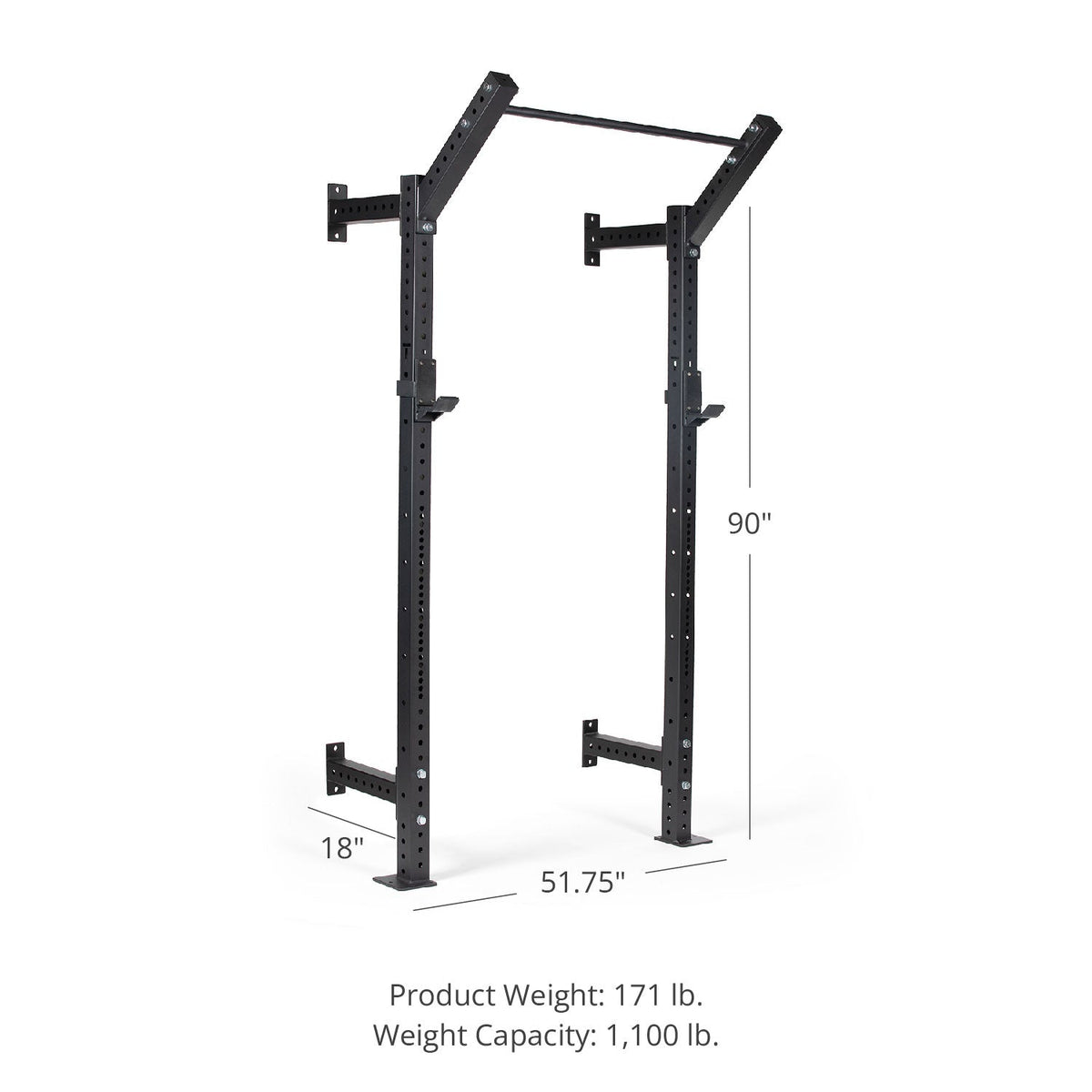

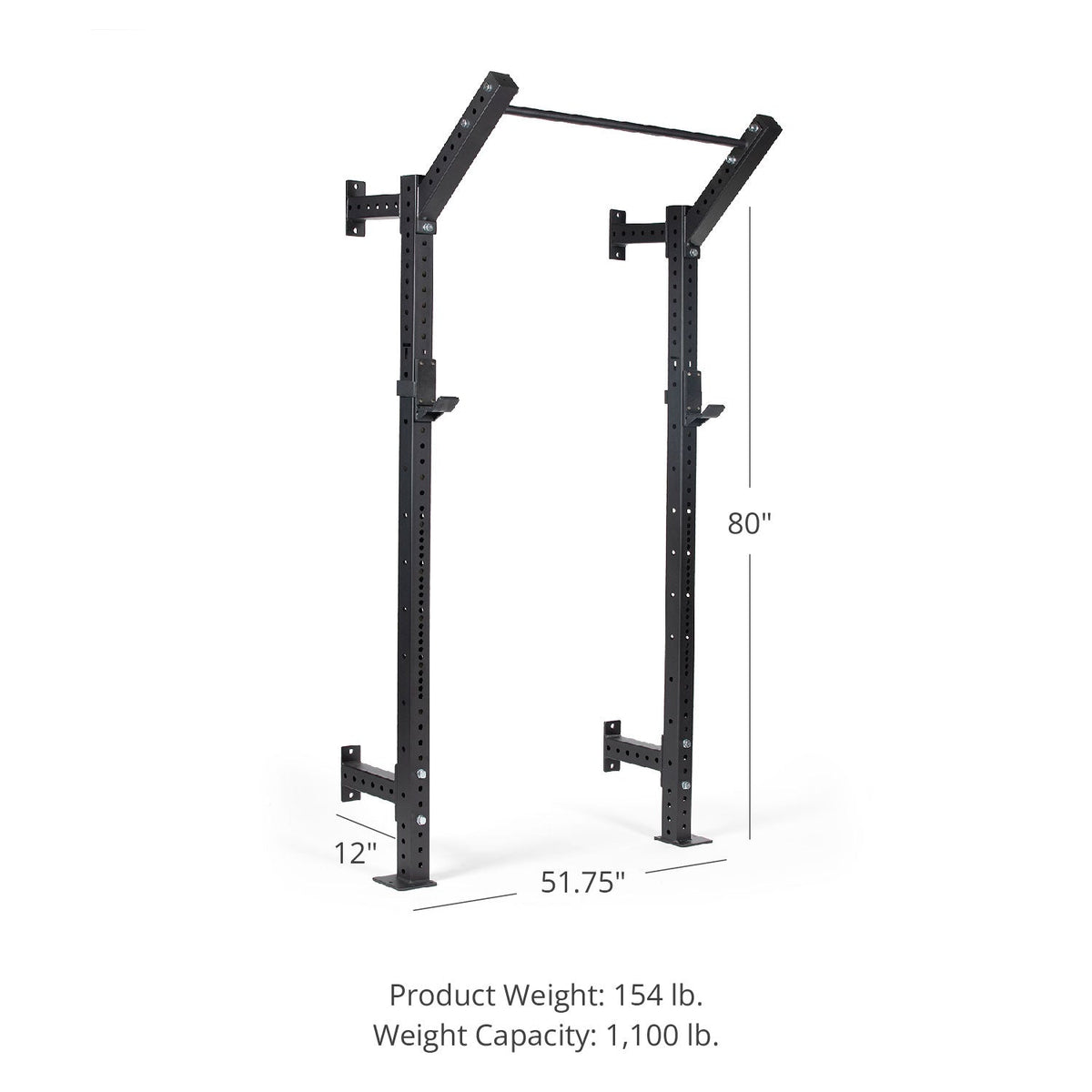

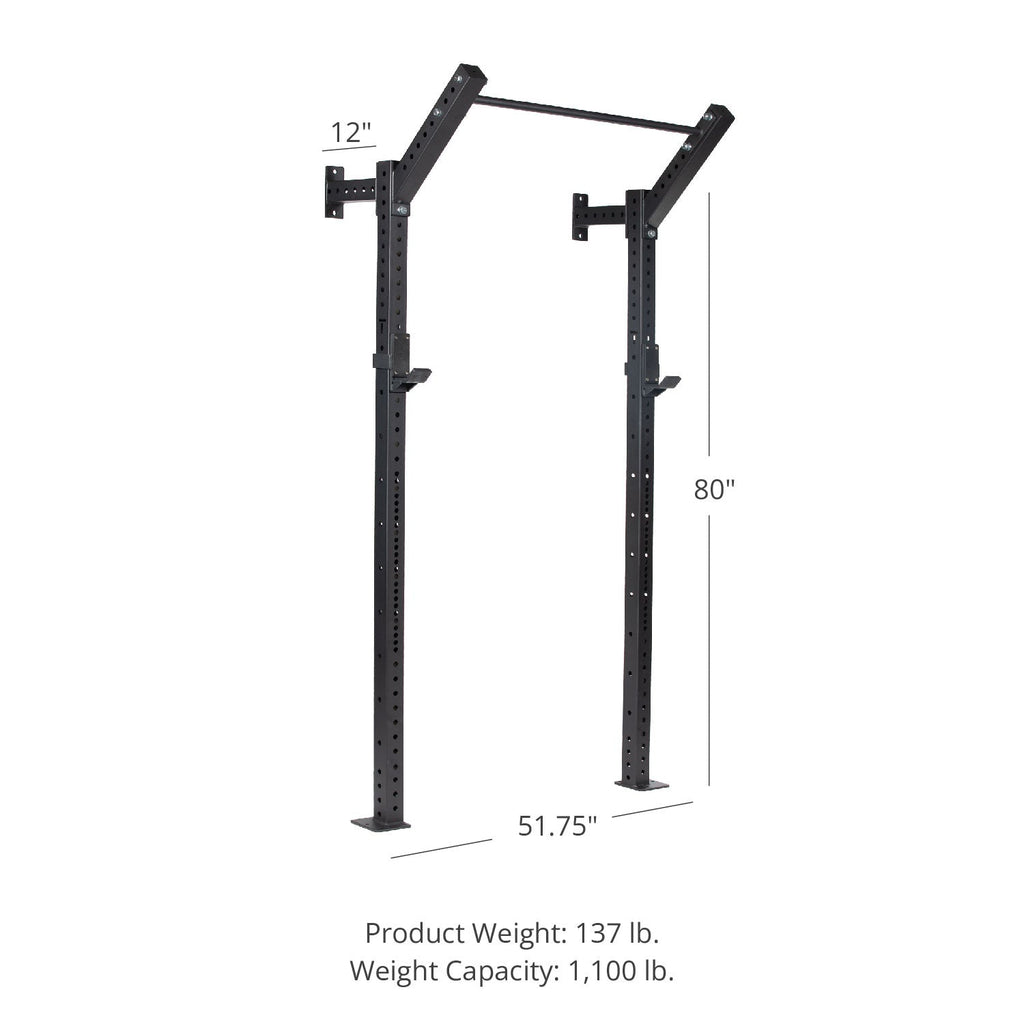

Overall Height

102.25-in.

Overall Width

51.75

Inside Width

42-in.

Inside Depth

12-in.

Upright Height

90-in.

Hole Size

11/16-in.

Max Pull Up Bar Height

97.75-in.

Pull-Up Bar Depth from Wall

27-in.

Pull-Up Bar Diameter

1.25-in.

Finish

Powder-Coated Black

Material

3 x 3-in. 11-Ga Steel

Weight Capacity

1,100 lb.

Product Weight

145 lb.

PRODUCT DETAILS

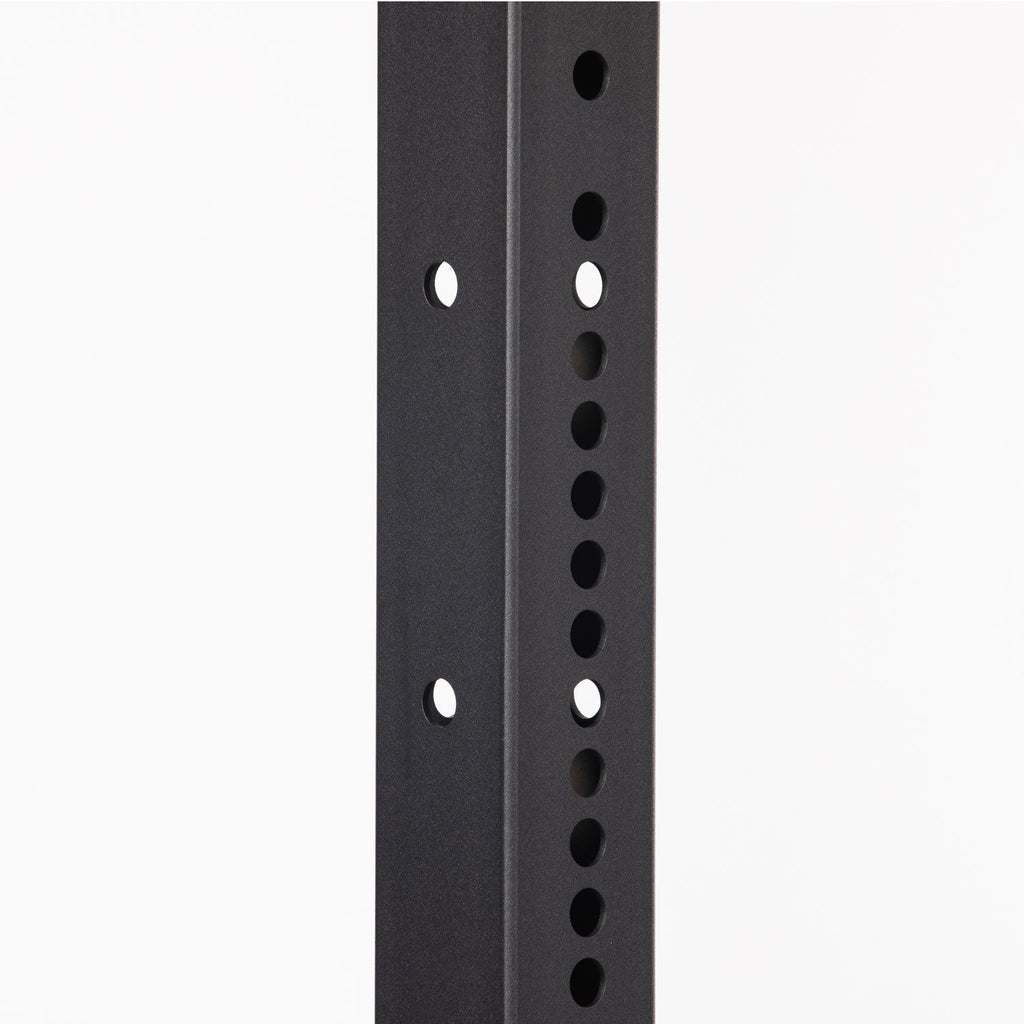

X-3 Series 3" x 3" 11-Gauge steel uprights
Gives you the functionality of a power rack with a small footprint

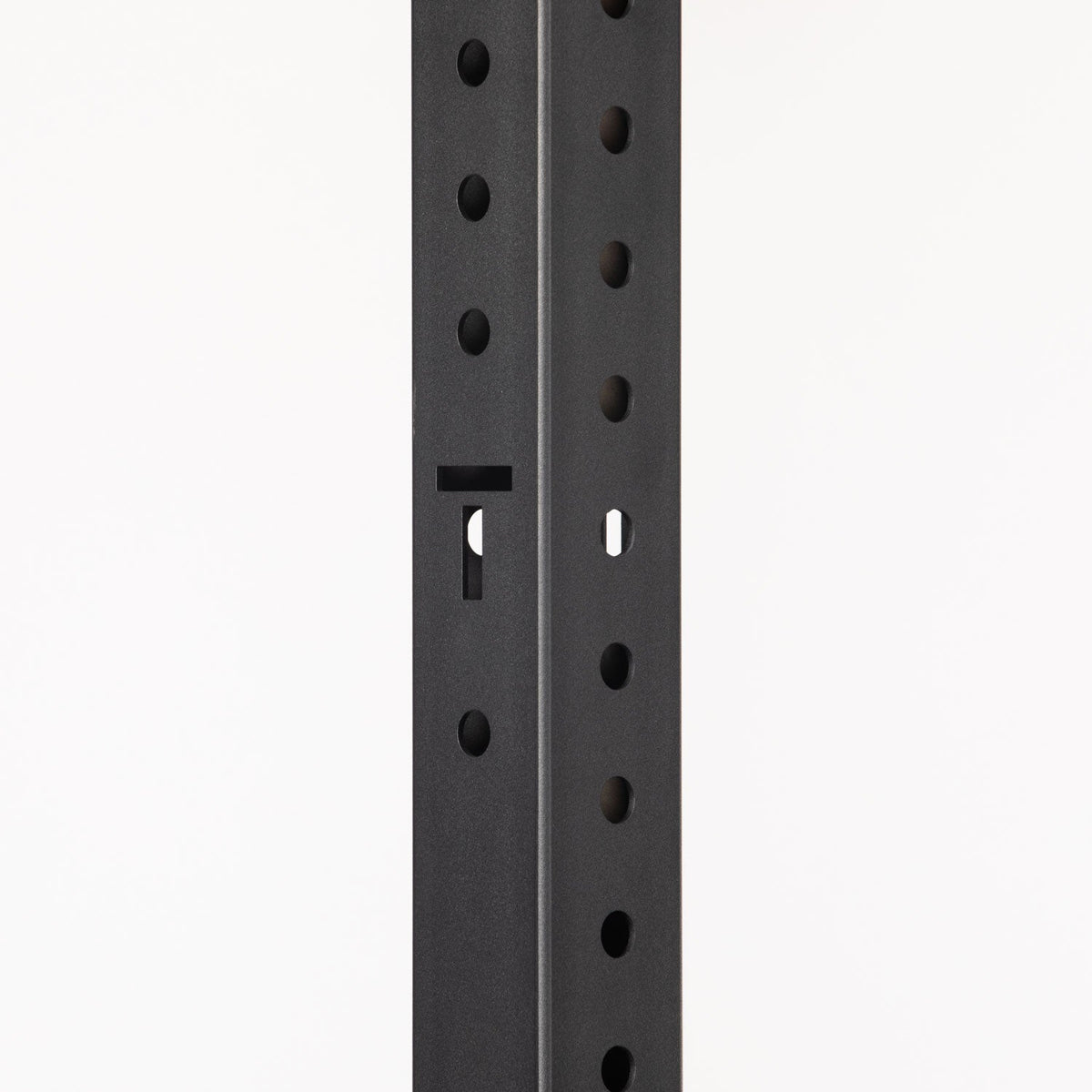

6" side hole spacing

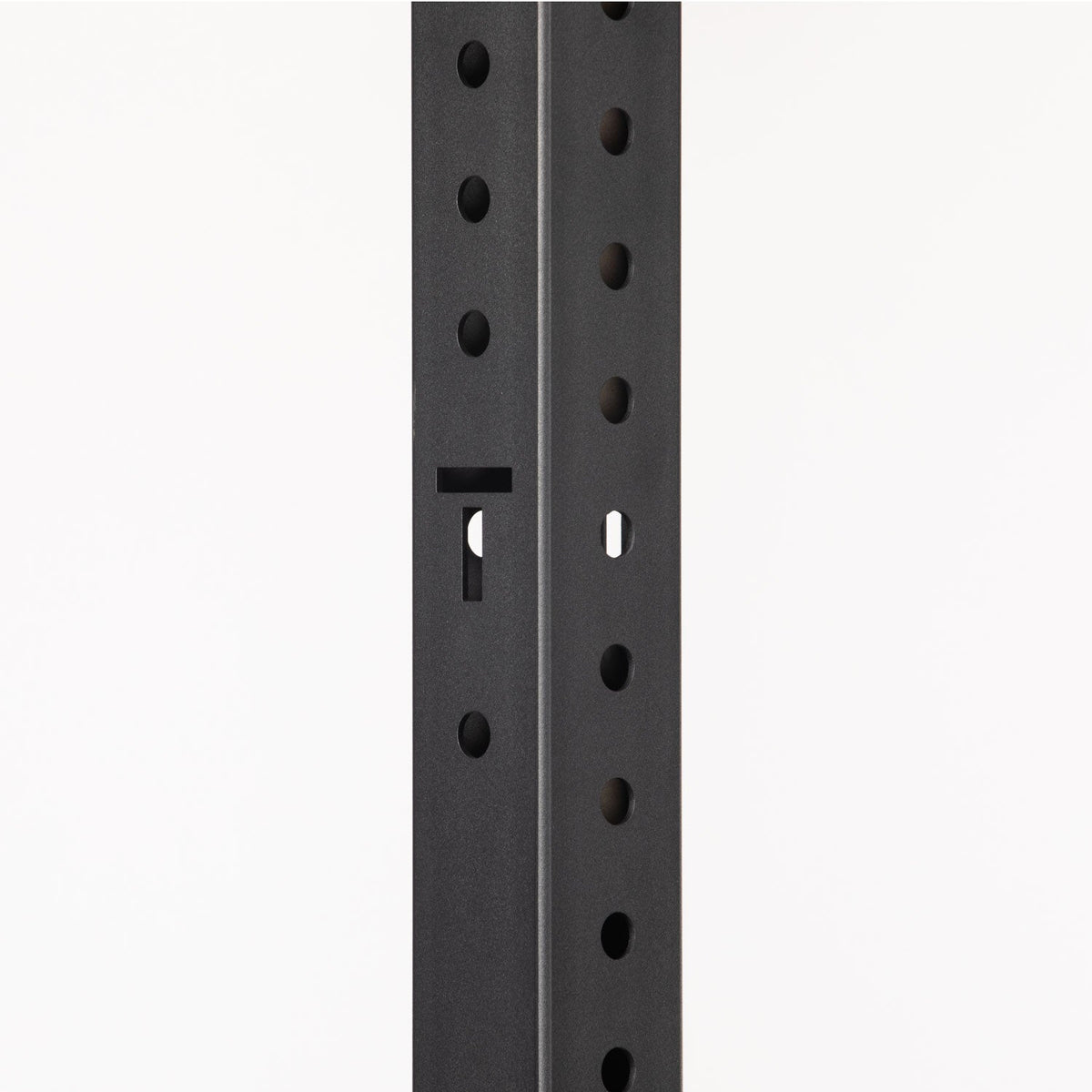

Westside hole spacing
(2) heavy-duty steel uprights
(2) top side bracings

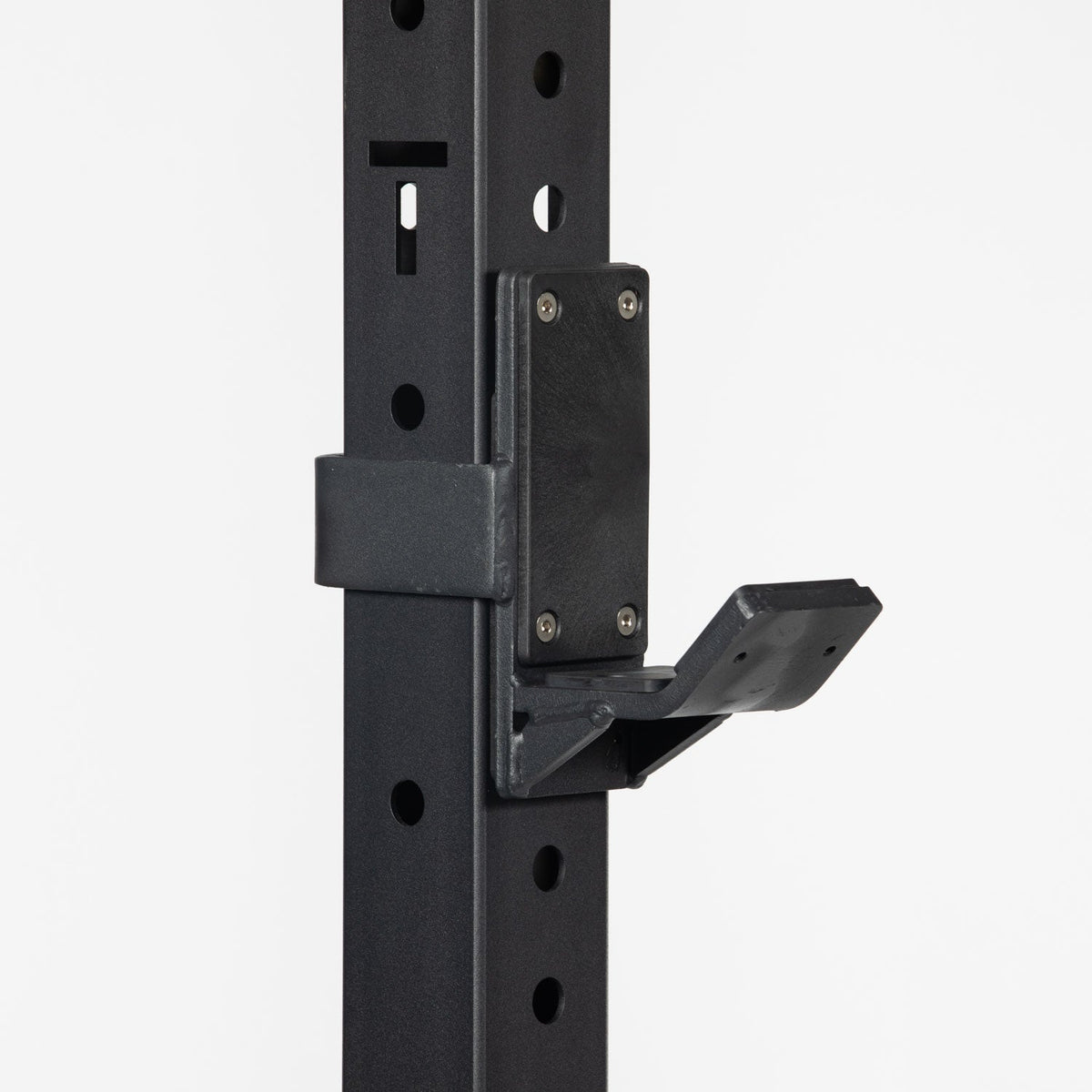

(2) J-Hooks with UHMW plastic

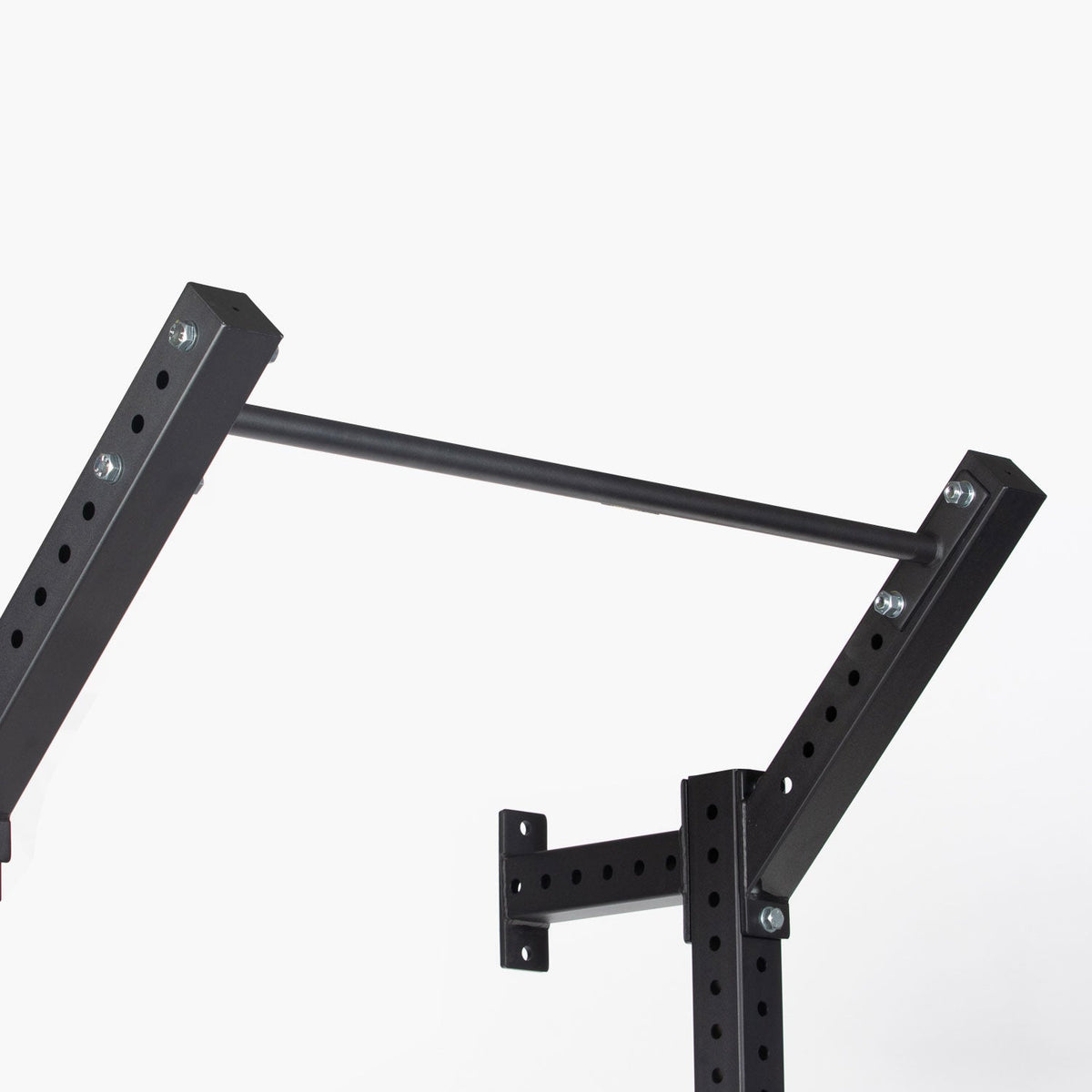

1.25" single pull-up bar
Assembly hardware

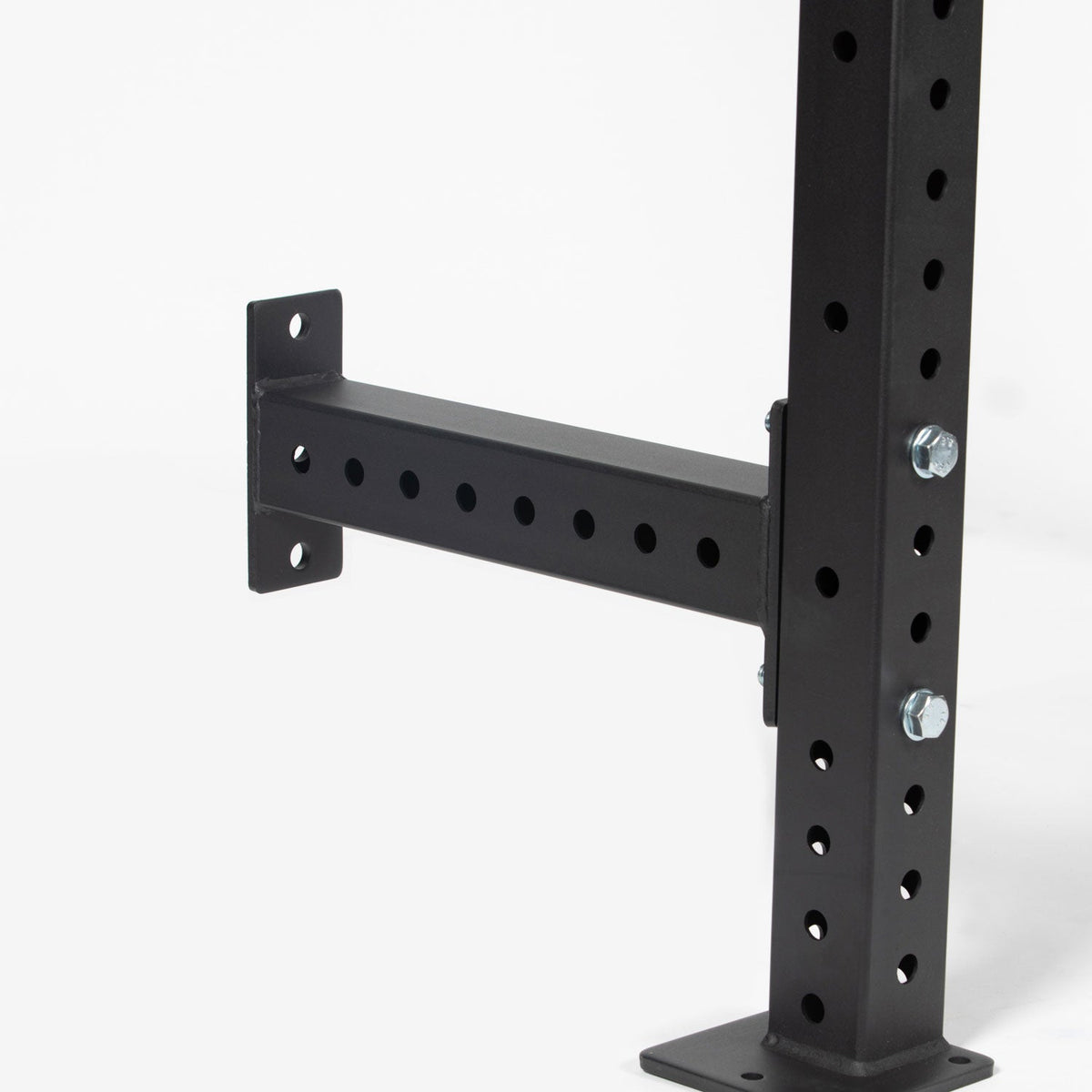

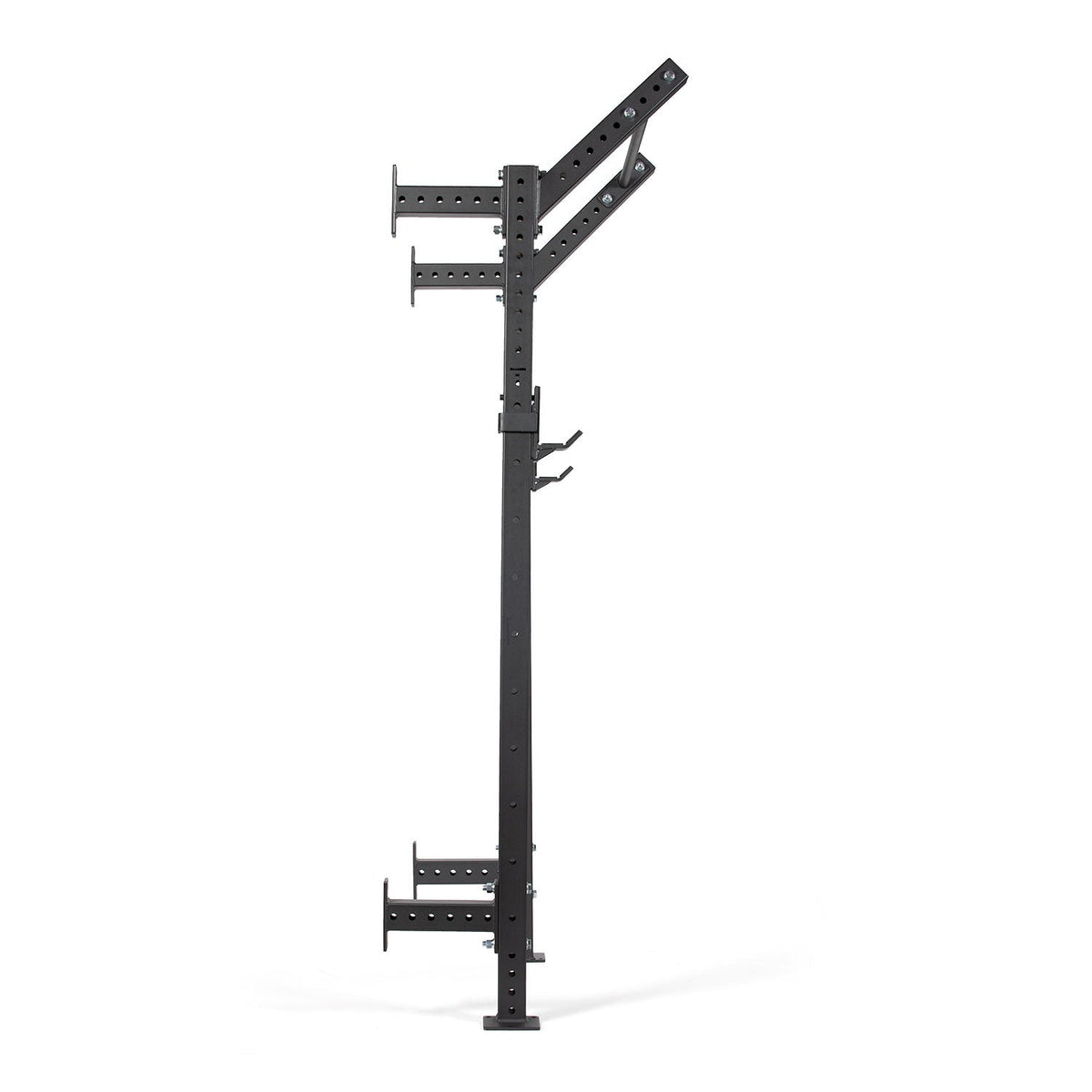

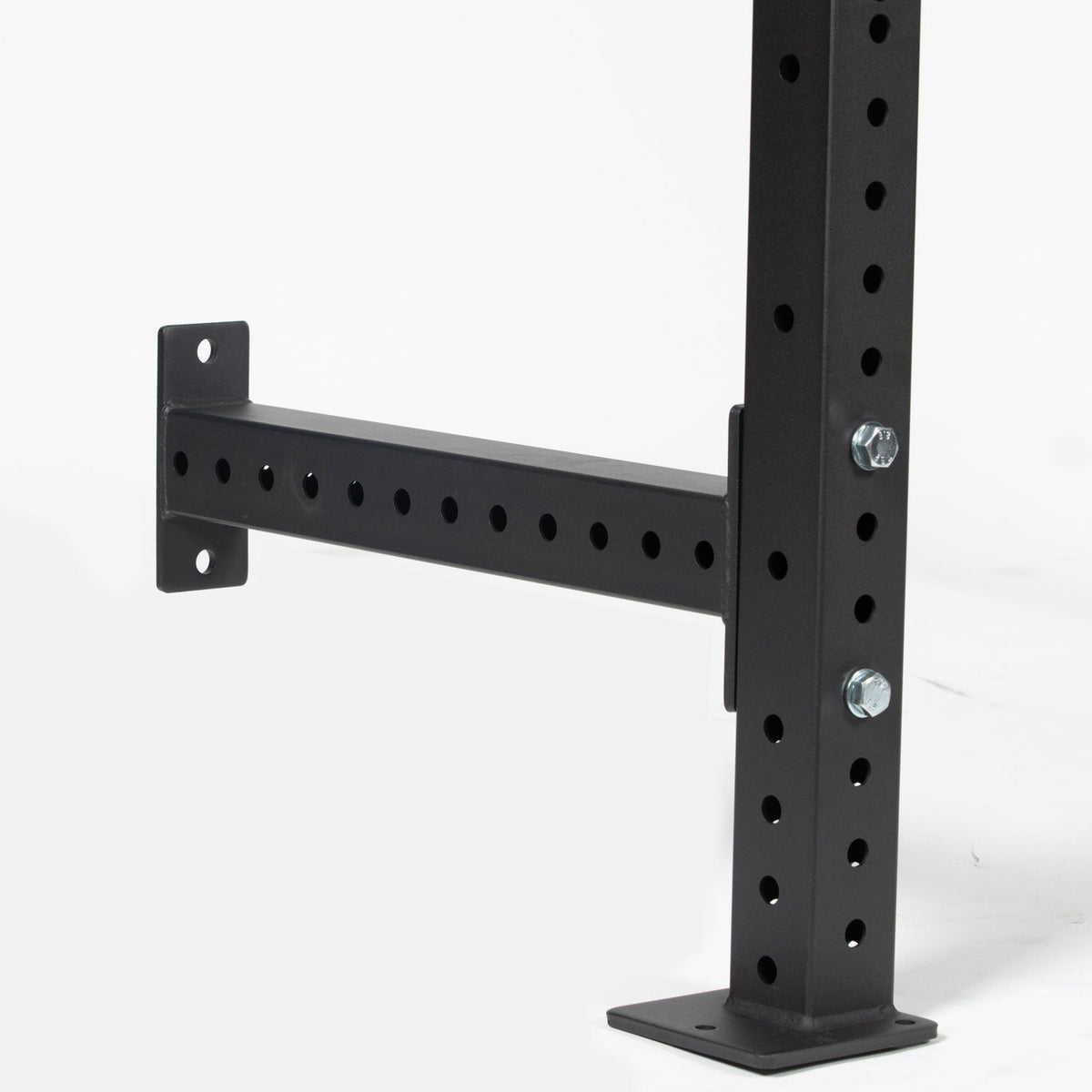

Optional: (2) bottom side bracings

View Product Manual
